WaterSecure™ 6K Solar Backup for Well Pumps
WaterSecure™ 6K Solar Backup for Well Pumps
*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.

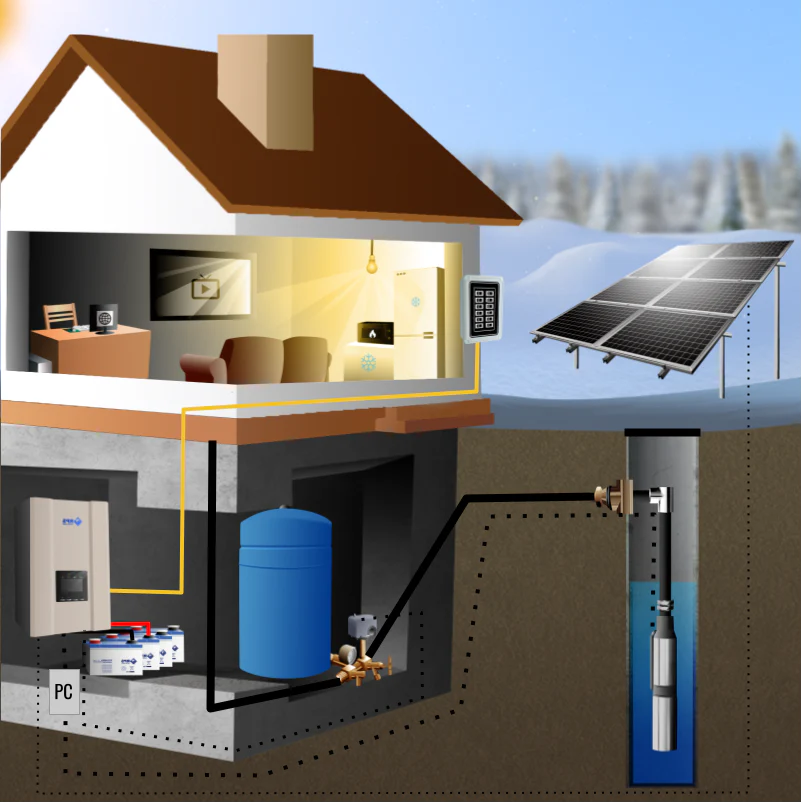

Water security when the grid goes down is finally possible! The WaterSecure 6K system delivers up to 6,000 watts of pure sine power! The versatility of this inverter allows for the running of a new or previously installed 110V or 220V Single Phase pump. Using this solar charged battery backup system, you are able to accomplish hours of run time when the grid goes down, ensuring you get the water you need at the most crucial times.
This plug-and-play system allows you the opportunity to install yourself with ease! The WaterSecure Kit does not leave you needing more! In fact, it offers MORE than just securing water! With the WaterSecure, you have the ability to secure power for some basic household appliances in times when they are needed the most. Check out our Complete Guide below, or call a Specialist today to learn more!
RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

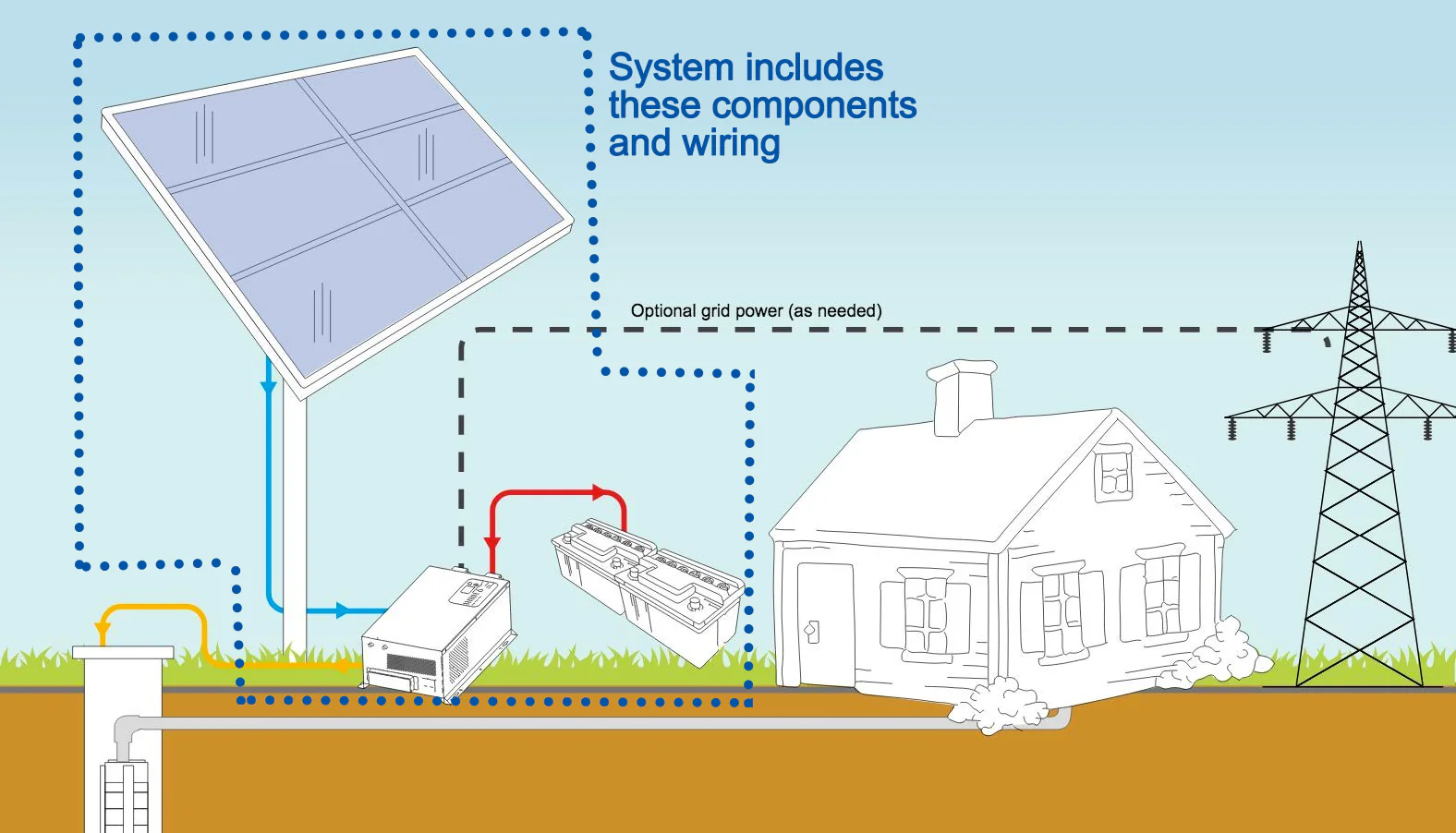

Kit Contents
All WaterSecure™ kits contain:
- RPS 100W or 375W Rugged Aluminum Framed Mono-Crystalline Solar Panels
- Solar Wires (2 x 50ft)

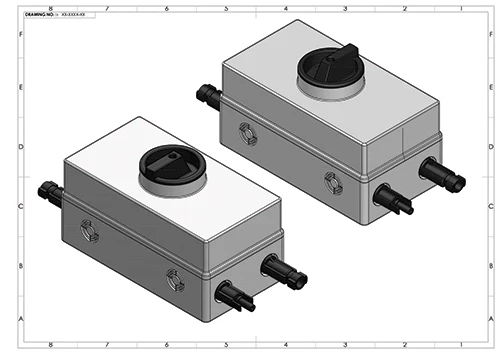

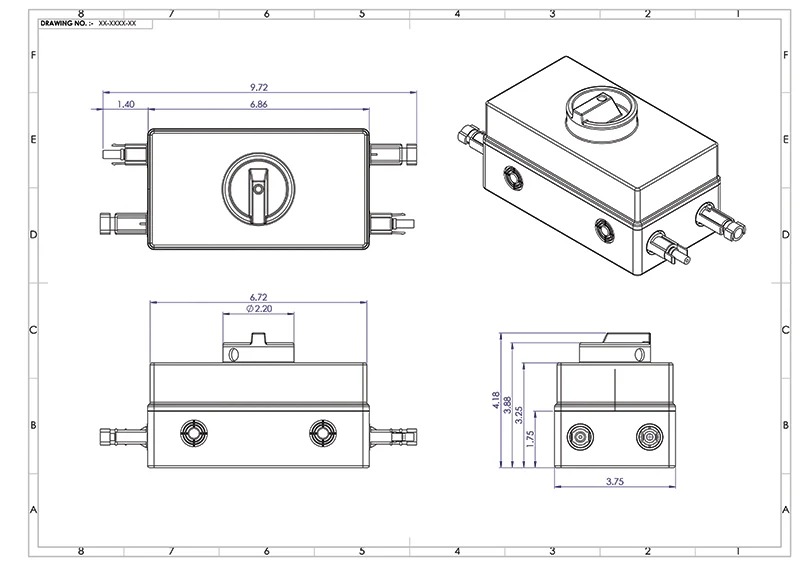

- DC Cut-off Switch

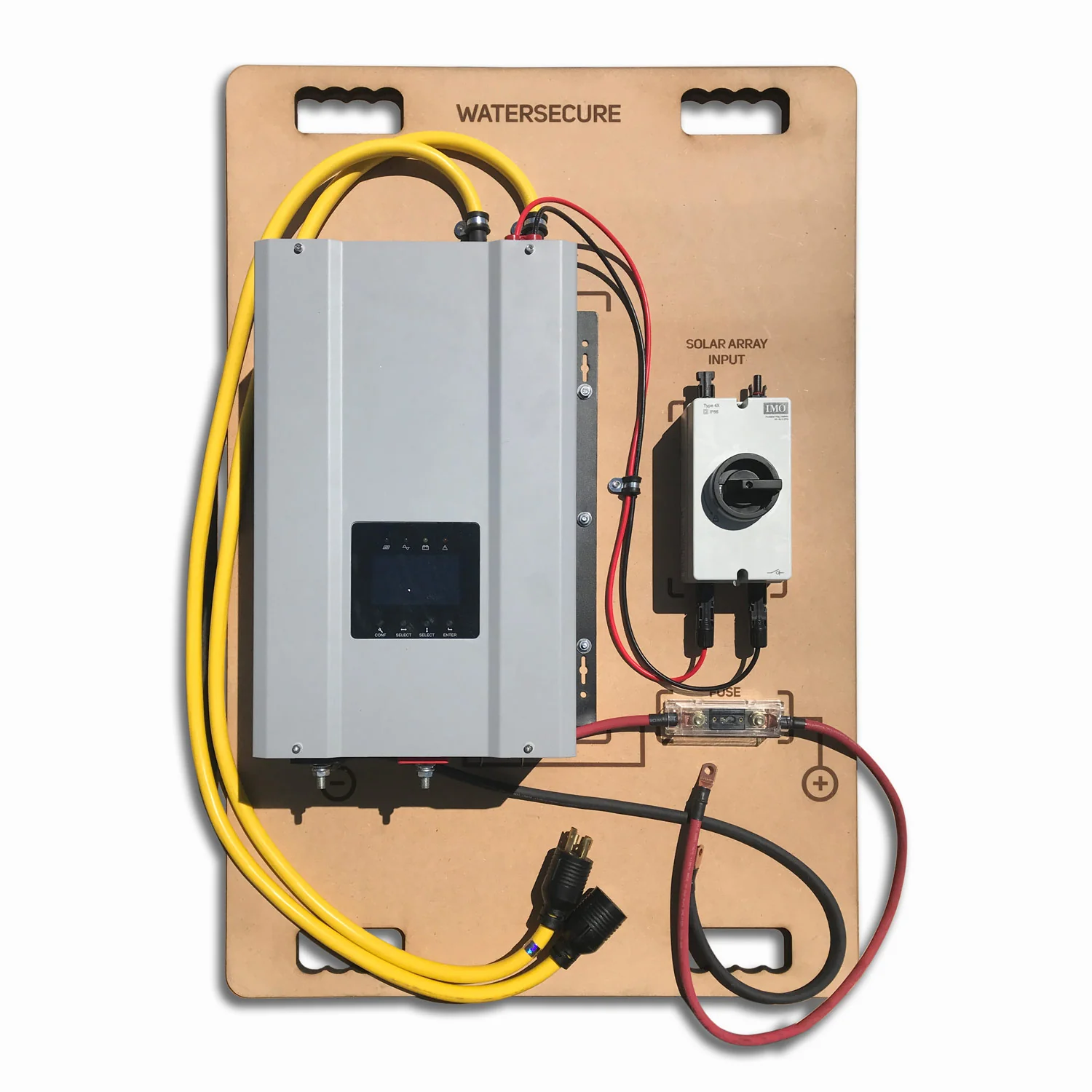

- 6,000W Inverter/Charger
- Plug+Wiring for AC or 220V Generator backup (3 feet)
- Battery Wiring and Jumpers (2.5 feet)
- Deep Cycle 12V GEL Batteries
- NEMA L14-30 Plug for quick install
- Breaker/Fuse
- Detailed Full-Color Installation Manual
- 2 Year Comprehensive Warranty
- Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
- Phone/Email/Text Support from Friendly USA based RPS engineers
- 20 Year Solar Output Guarantee
- 25 Year Support Guarantee with Reconditioned Swap Pricing
- RapidReplace™ Program*

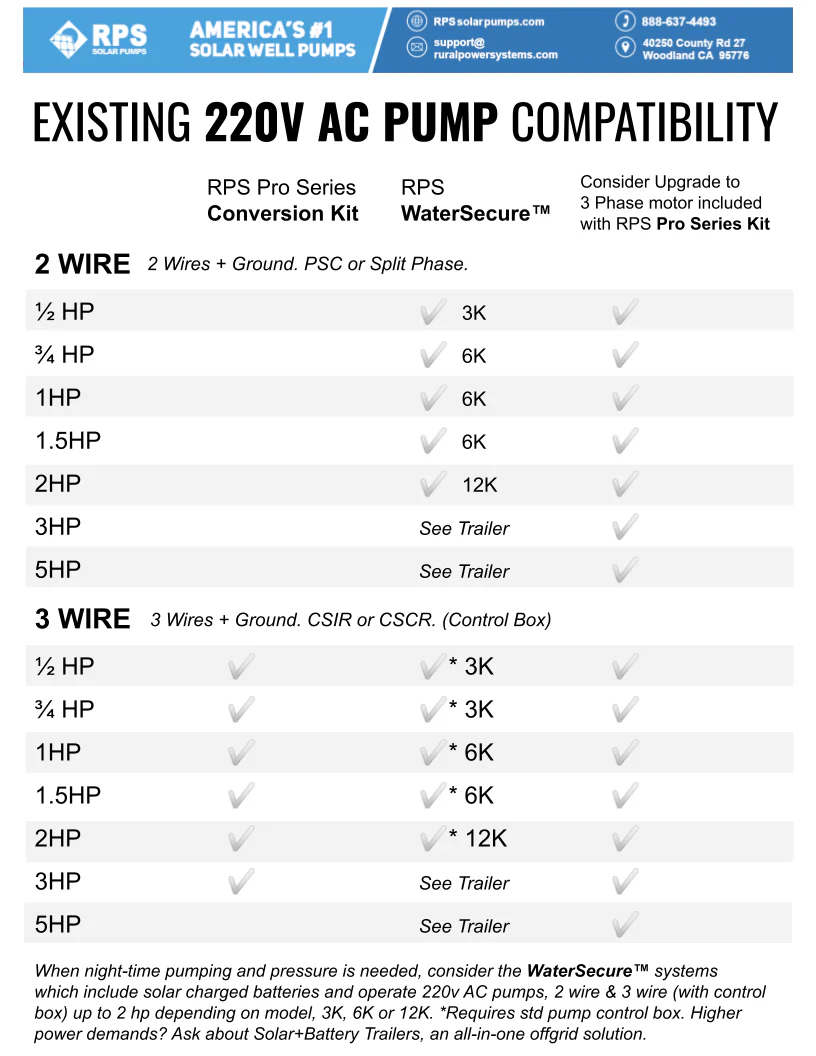

System is near universal with any traditional AC well pump motor, but let our engineers know if you have a question on compatibility. No pump? It will also work as an AC power system for off-grid home or cabin. Solar panel mounting is not included, visit our Pole Mounting or Scalable Ground Mounting pages for more info on mounting your solar panels.
*6K and 12K Only
Component Dimensions:
|
Solar Panels: (100W) 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each; Large (390W) 79" x 39" x 1.4", ~51 lbs Each Well Pump: Model Dependent Controller: 21" x 16" x 8" ~86lbs |
Downloads:
WaterSecure Technical Brochure 📄
WaterSecure™ 6K Solar Backup for Well Pumps SPEC SHEET 📄
Complete Guide to WaterSecure™ 📄
100W SOLAR PANEL SPEC SHEET.PDF 📄
390W SOLAR PANEL SPEC SHEET.PDF 📄
Download the Complete Guide to Watersecure
Sizing
For sizing we generally like to know...
1. Current Pump voltage and horsepower
2. Gallons of water per day your family uses (usually 50-100 gallons/day per person)
Gallons Per Day (GPD)
| HP of Pump* | WS-6K-800 |
|
WS-6K-1600 | WS-6K-2400 |
|
|
2120
|
2120** | 3179 |
6359 |
|
|
|
|
|
|
|
|
|
|
|
|
| 1.5 or 2.0 HP? 3.0 HP And Higher? See Fully Built Out Solar Trailer with Generator |
|
* GPD Calculated using an average of 6GPM for each pump size
** 50% Faster Charging so pump runtimes extended on sunny days
Solar Panels Included
| WS-6K-800 |
WS-6K-1200
|
WS-6K-1600 | WS-6K-2400 |
| 8 (100W) | 12 (100W) |
16 (100W) | 8 (390W) |
Batteries Included (12V Deep Cycle GEL)
| WS-6K-800 |
WS-6K-1200
|
WS-6K-1600 | WS-6K-2400 |
| 8x 50Ah | 12x 50Ah | 12x 50Ah | 8x 150Ah |
Need more power? Want to make your power mobile? Take a look at the NEW 2024 Sun Titan Mobile Solar Generator with Lithium Iron or GEL Batteries.
