RPS Pro Series Lake Maker XL

Our Pro Series Custom Kits are designed based on your projects specs, generally higher volume, applications. We use hearty 3-Phase Motors and 4" or 6" Pump Ends. Our controllers are the best in the world and allow customization and optimization based on sun and season.

Make sure one of the Deep or Volume kits won't work for your project first, then contact us or choose from options below. Specs, Kit Contents and Volume Estimates of smaller kits.

Need larger? See our Big Ag Series!

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

"The Lake Maker XL Volume 5hp" (and "5hp High Head")

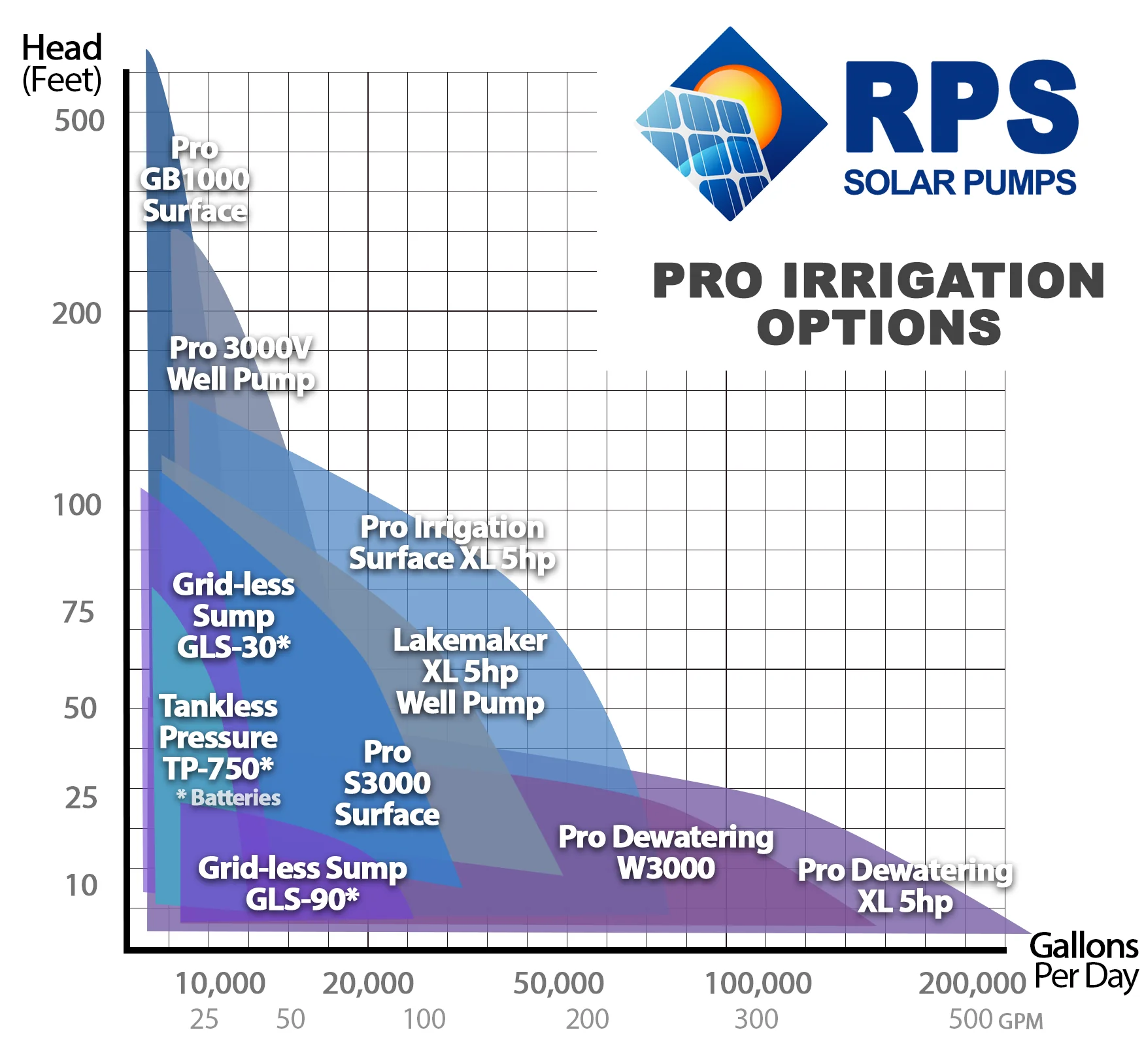

High Volume Pump Ends on a 5hp Motor. Up to 200 GPM for low head wells.

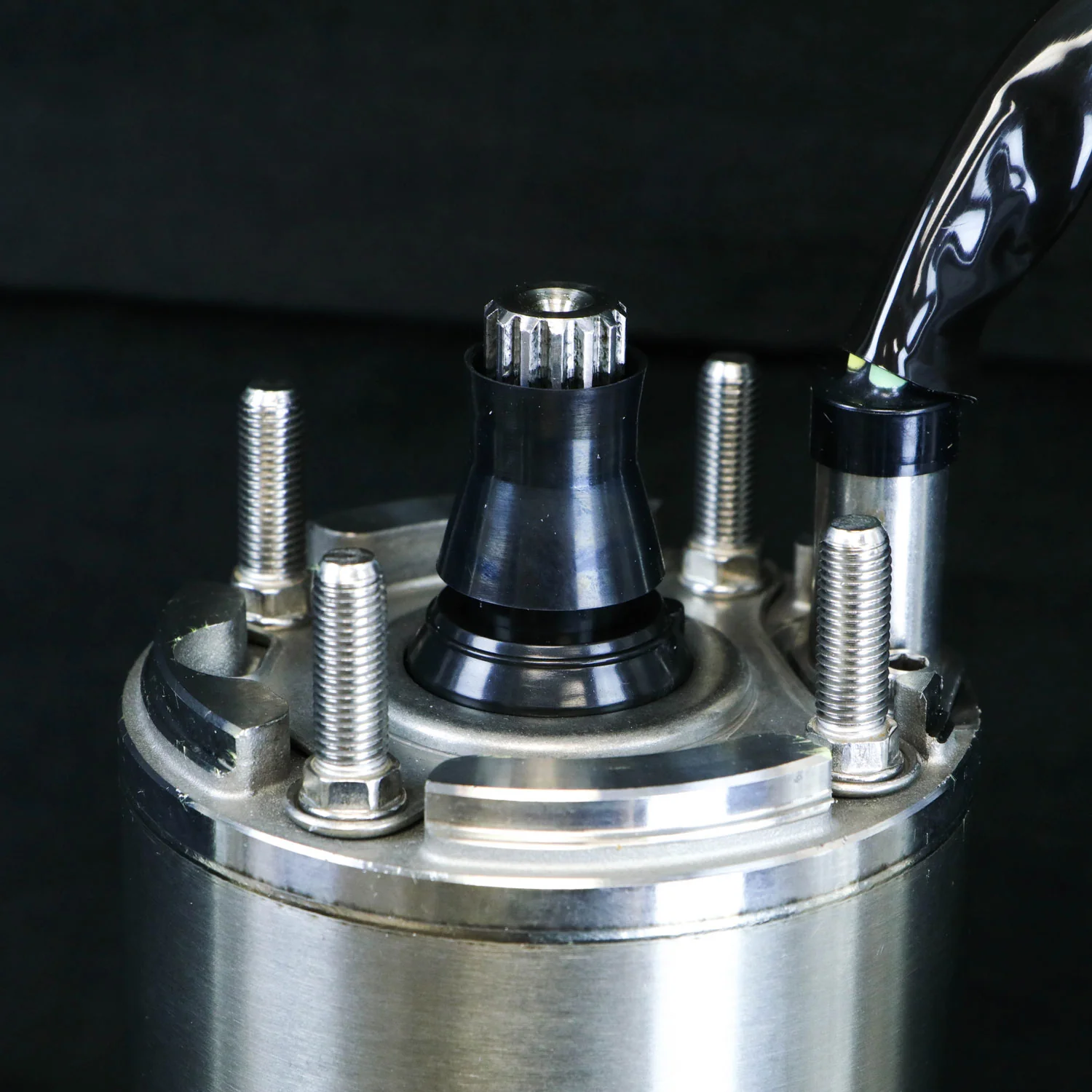

• 5 hp 3 Phase Brushless Motor with Stainless High Volume Pump End (6", Requires 8" casing or above)
• 4 kW Rated Solar Controller (takes DC Voltage from Solar Panel array +ability to run with 6000w 220v 3 Phase Generator)
• 3" FNPT Pump Outlet
• Connector cables to controller with connectors for parallel strings
• Grounding Kit (copper wire, lug and tape)
• Simplified Wiring Diagrams for easy hookup

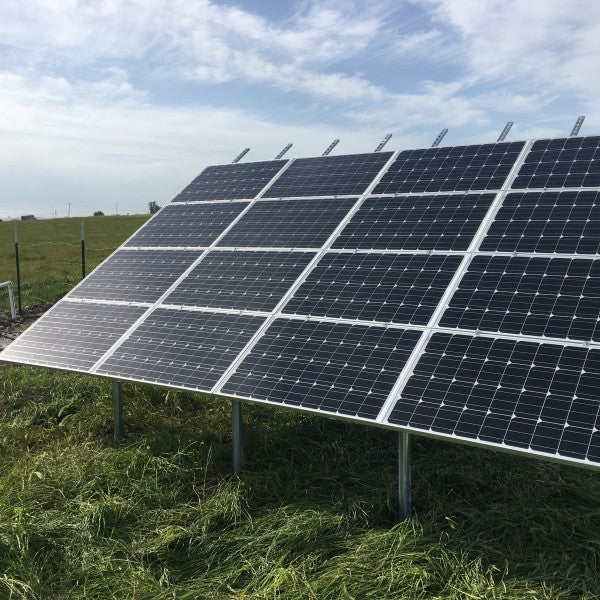

• Consulting re: Mounting solar array with Schedule 40 pipe at Fixed Angle (similar)
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers
• Phone & Email support before and during installation
• 20 Year Solar Output Guarantee
• 25 Year Support Guarantee with Reconditioned Swap Pricing
• RapidReplace™ Program*

Component Dimensions:

Solar Panels: (100W) 38.6” x 20.9” x 1.18”, ~15lbs Each  (390W) 79" x 39" x 1.4", ~51 lbs Each Well Pump: 6" OD, MODEL DEPENDENT LENGTH, 3" Outlet Controller: 17” x 14” x 6.5”, ~23lbs



390W SOLAR PANEL SPEC SHEET.PDF 📄
