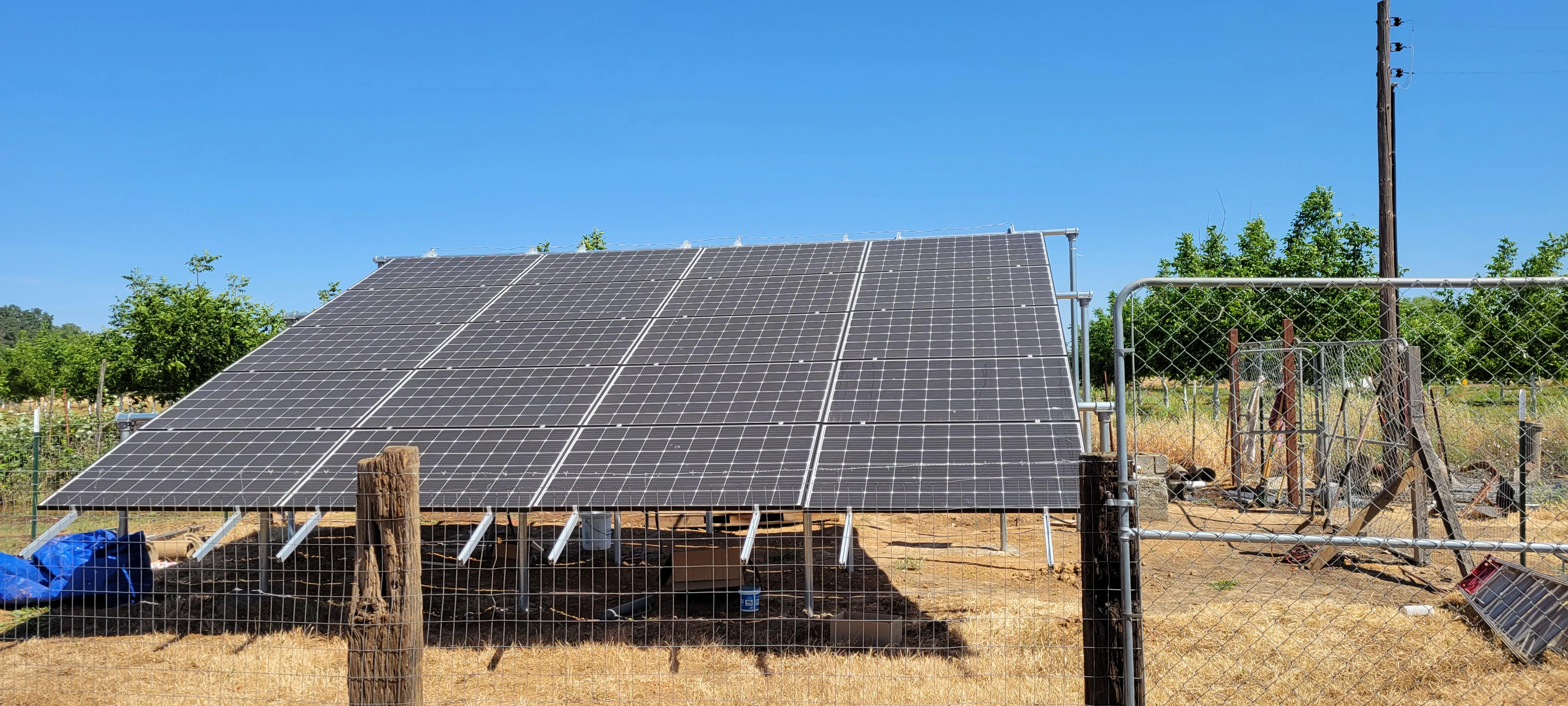

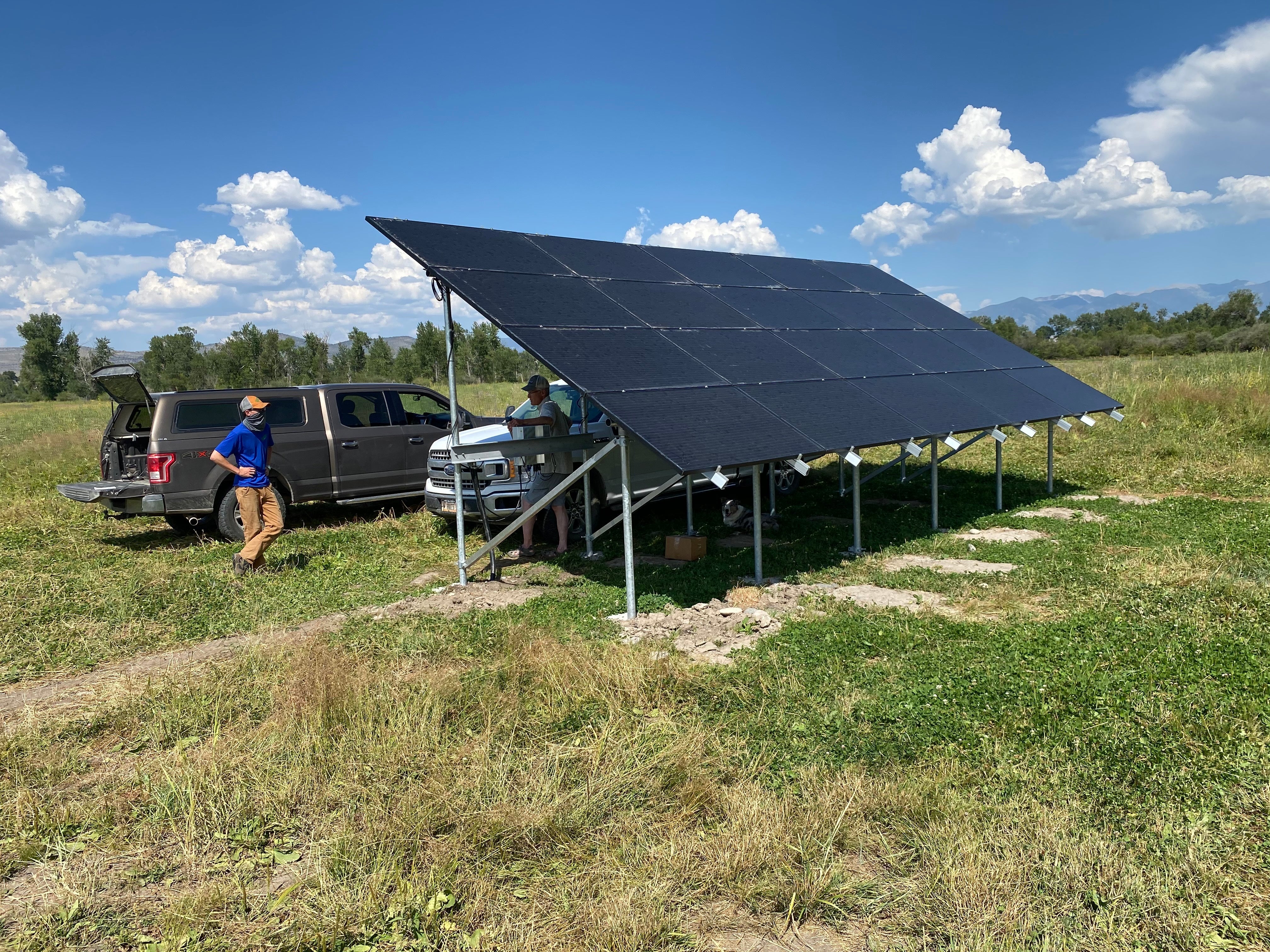

Scalable Solar Panel Ground Mounting

Finally there is an affordable and easy-to-install mounting systems for larger panels and arrays at fixed angles. The new Scalable Solar Panel Ground Mounting by RPS is the quickest way to plan for mounting a large array. These Ground Mounts are built using the tried-and-true post & beam substructure, bridged by our popular RPS rails and solar panel fastening hardware - the gold standard with our Top-of-Pole Mounting systems.

For installation, all you need to bring are a few tools, some "2in steel pipe" (2-3/8in OD) and a few bags of cement for the post holes. (and your RPS solar pump kit of course!)

Check out the Scalable Ground Mounting Manual

Note: When sizing for your system, the HR4's are compatible with large 200W-390W solar panels.  HR8's are intended for 100W solar panel (<22in in width).

Each mount kit comes with Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers.

	VC1-HR4	VC1-HR8	VC2-HR4	VC2-HR8	VC3-HR4	VC3-HR8
Vertical Columns	1	1	2	2	3	3
Horizontal Rows	4	8	4	8	4	8
Number of Solar Panels	4	8	8	16	12	24
Common Panel Size	375	100	375	100	375	100
Common Array Wattage	1500	800	3000	1600	4500	2400
Total Array Width (ft)	5	5	10	10	20	20
Total Array Depth (ft)	16	16	16	16	16	16
Compatible RPS Model	RPS Pro Series 1000 (large panels)	RPS 600, 800, 800V, Pro 500, RPS Tankless Pressure TP-750-8	RPS Pro Series 1500, 2000	RPS Tankless Pressure TP-750-10, WaterSecure 1200, 1600, Pro Series 750	RPS Pro Series 2000, 3000	WaterSecure WS-6K-2400



VC = Vertical Column, HR = Horizontal Row

 For RPS Pro 3000, 3hp and 5hp Arrays:





	VC4-HR4	VC4-HR8	VC5-HR4	VC5-HR8	VC6-HR4	VC6-HR8
Vertical Columns	4	4	5	5	6	6
Horizontal Rows	4	8	4	8	4	8
Number of Solar Panels	16	32	20	40	24	48
Common Panel Size	375	100	375	100	375	100
Common Array Wattage	6000	3200	7500	4000	9000	4800
Total Array Width (ft)	20	20	30	30	30	30
Total Array Depth (ft)	16	16	16	16	16	16
Compatible RPS Models	RPS Pro Series 5000, Irrigation & Dewatering		RPS Pro Series 3000		RPS LakeMaker XL 5HP





*customer supplied "2in steel pipe" (2-3/8 OD steel pipe)
