RPS T400/T800 Solar Transfer Pump Kit

*Buying after hours? Be sure to leave your phone number during checkout for a free Post-Purchase Water Assurance Call --- to make sure you've got what you need to install.*

With our same best-selling RPS pump controller and a brushless motor, this pump offers small to medium scale surface/transfer/booster pumping with ease. Stainless steel impeller housing and impeller means it won't wear out. This solar direct-drive system can attach to the outlet of any storage tank or does suction up to 15' so can draw water up from ponds, springs, creeks and shallow wells. It can pressurize water systems for irrigation or cattle waterers but compare with Tankless Pressure Pump if 24 hours water pressure is needed as that system uses batteries and can pump outside the 'solar day'. The T400 will pressurize to about 40psi during full sun.

RPS is a growing 100% American-owned company of friendly, helpful solar water specialists who love our dogs, tractors, trucks and coffee. We are honored and blessed to have such great staff and customers all over this great country.

Kit Contents

RPS T400/T800 Solar Transfer Pump Kit includes:

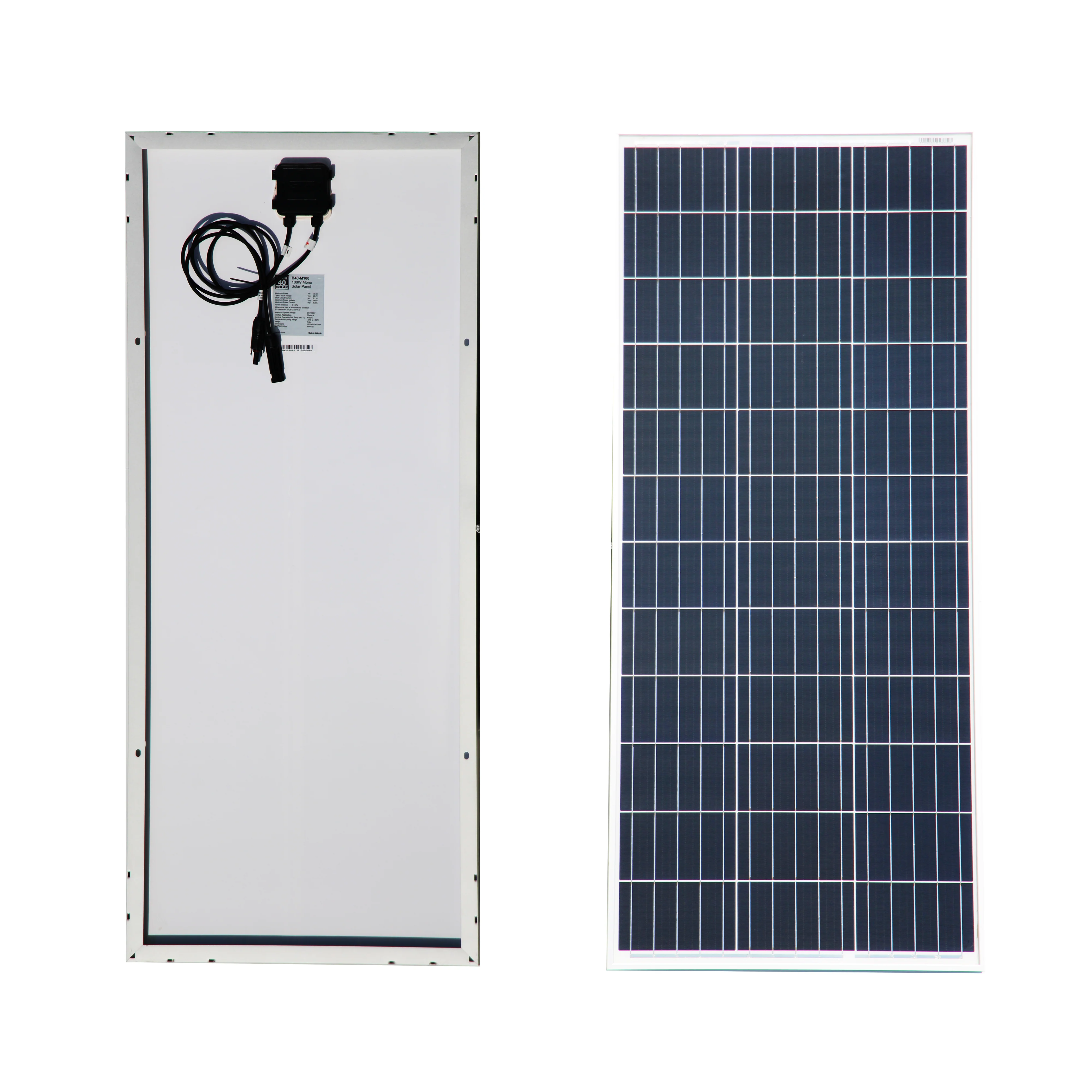

• Mono-Crystalline Solar Panels (4 or 8 depending on kit)

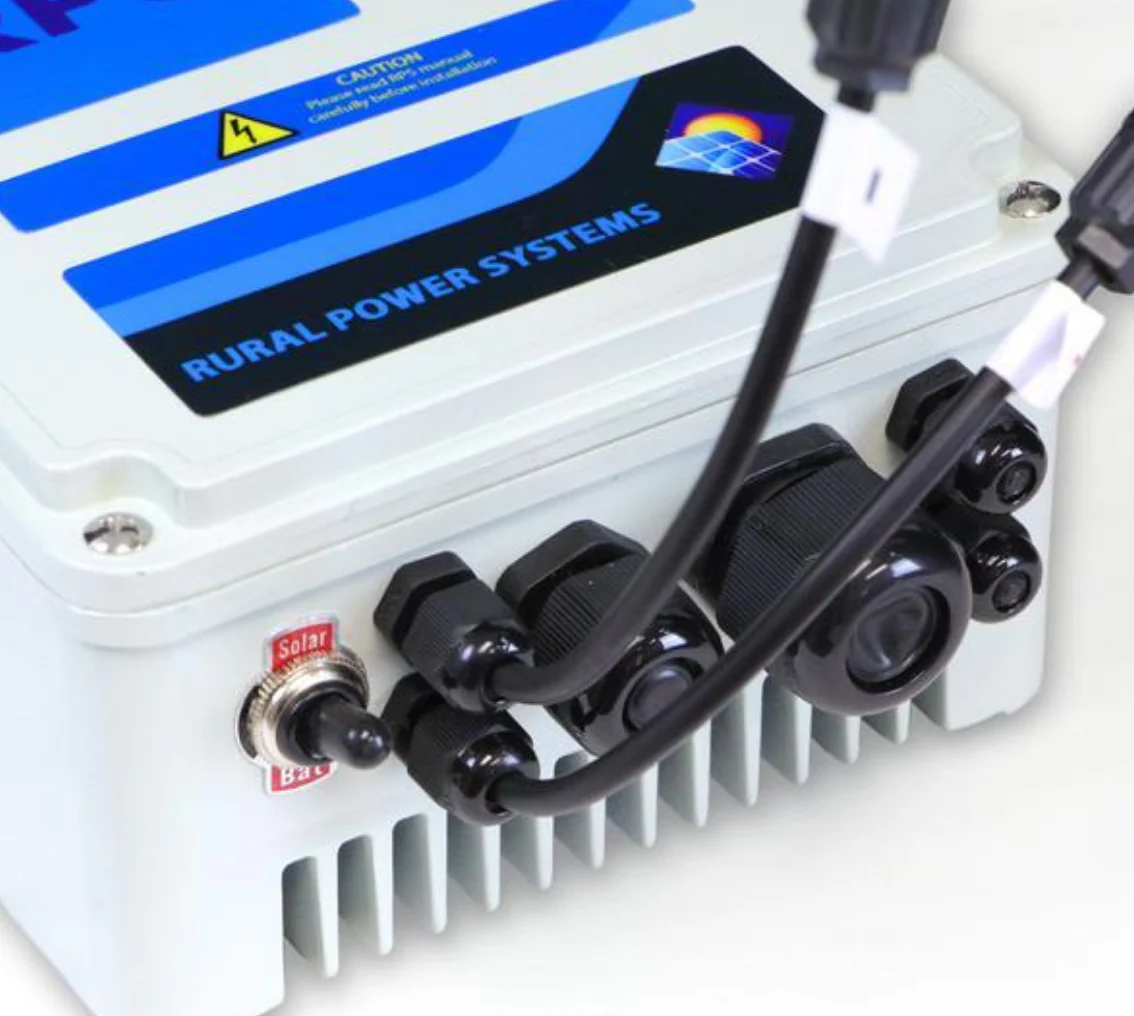

• Solar pump controller

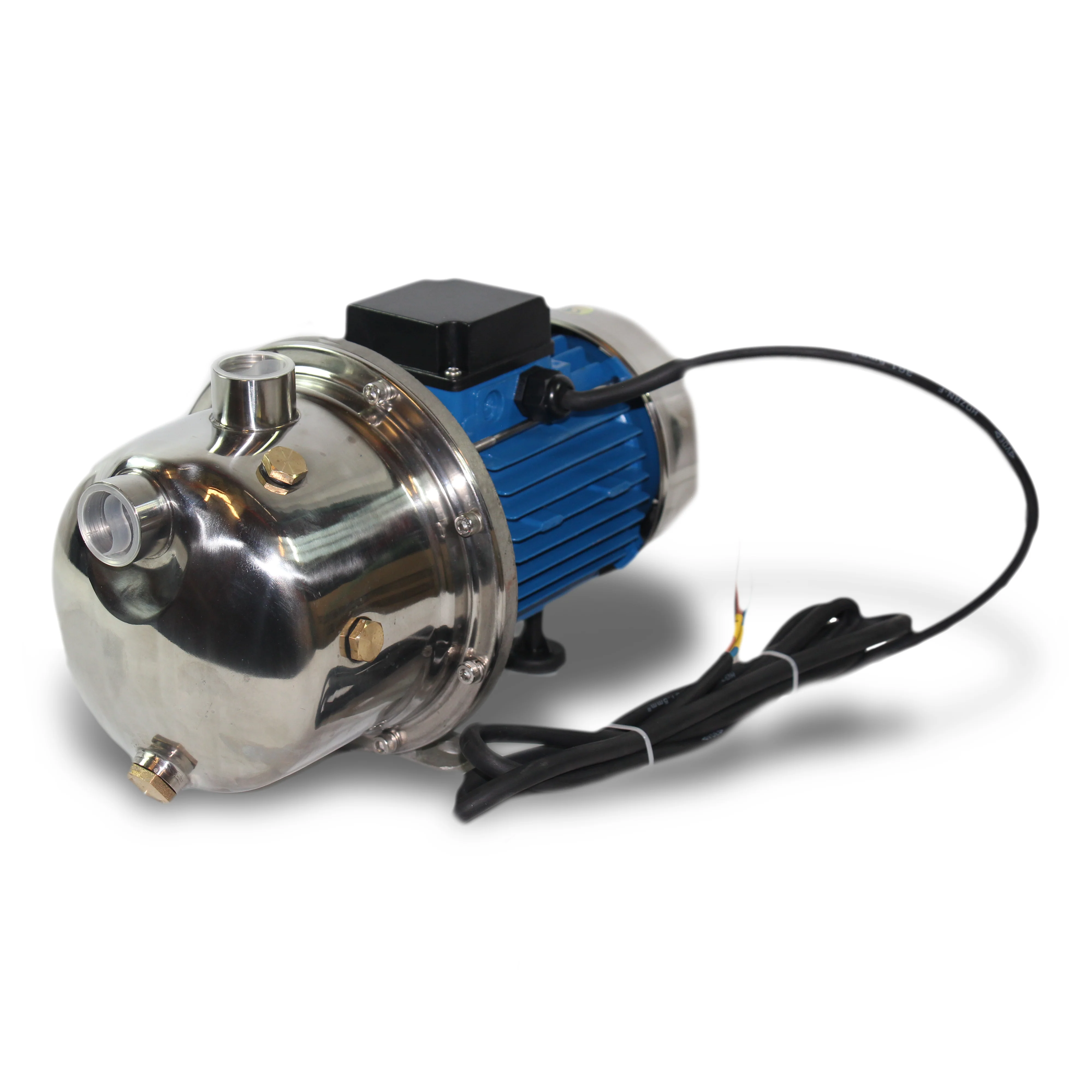

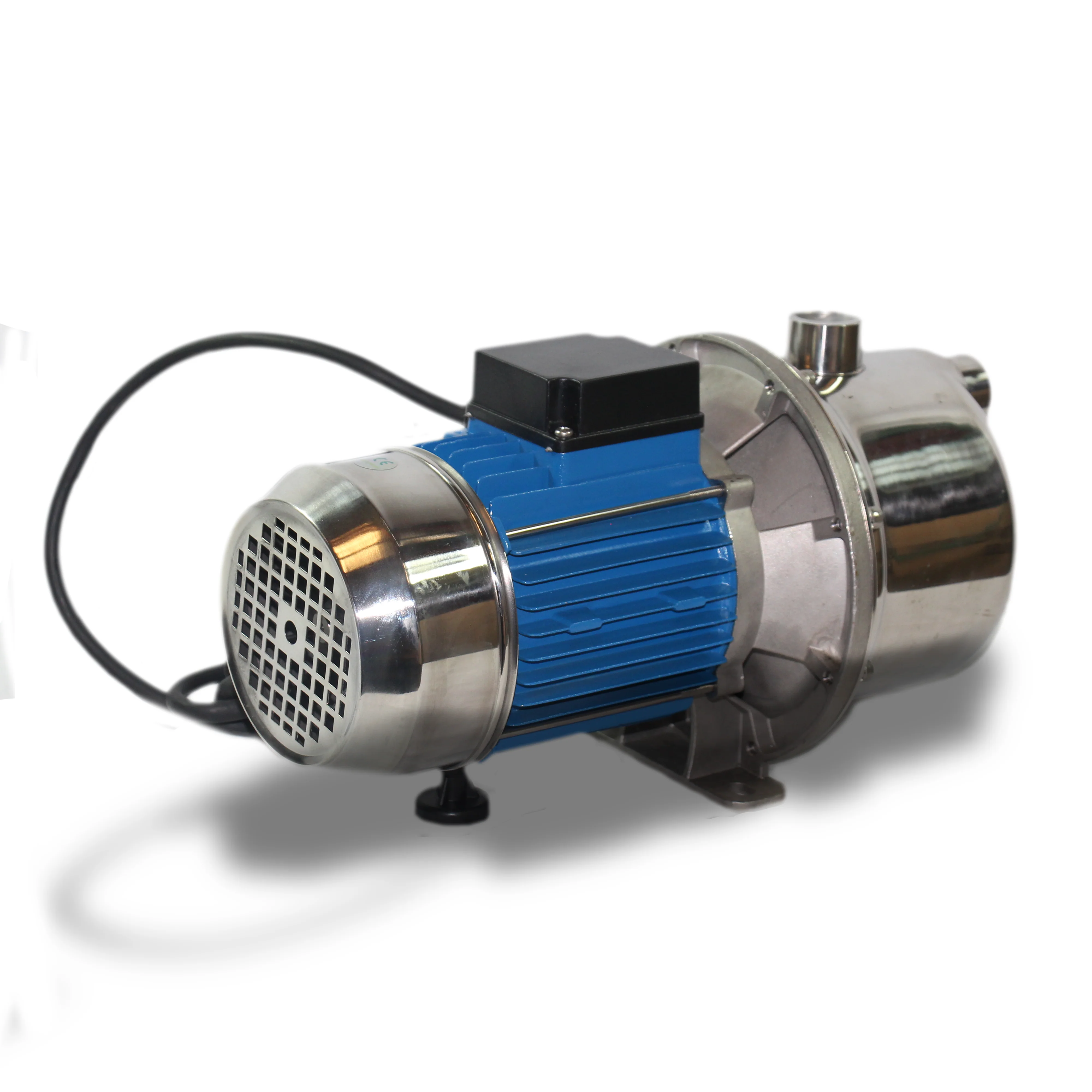

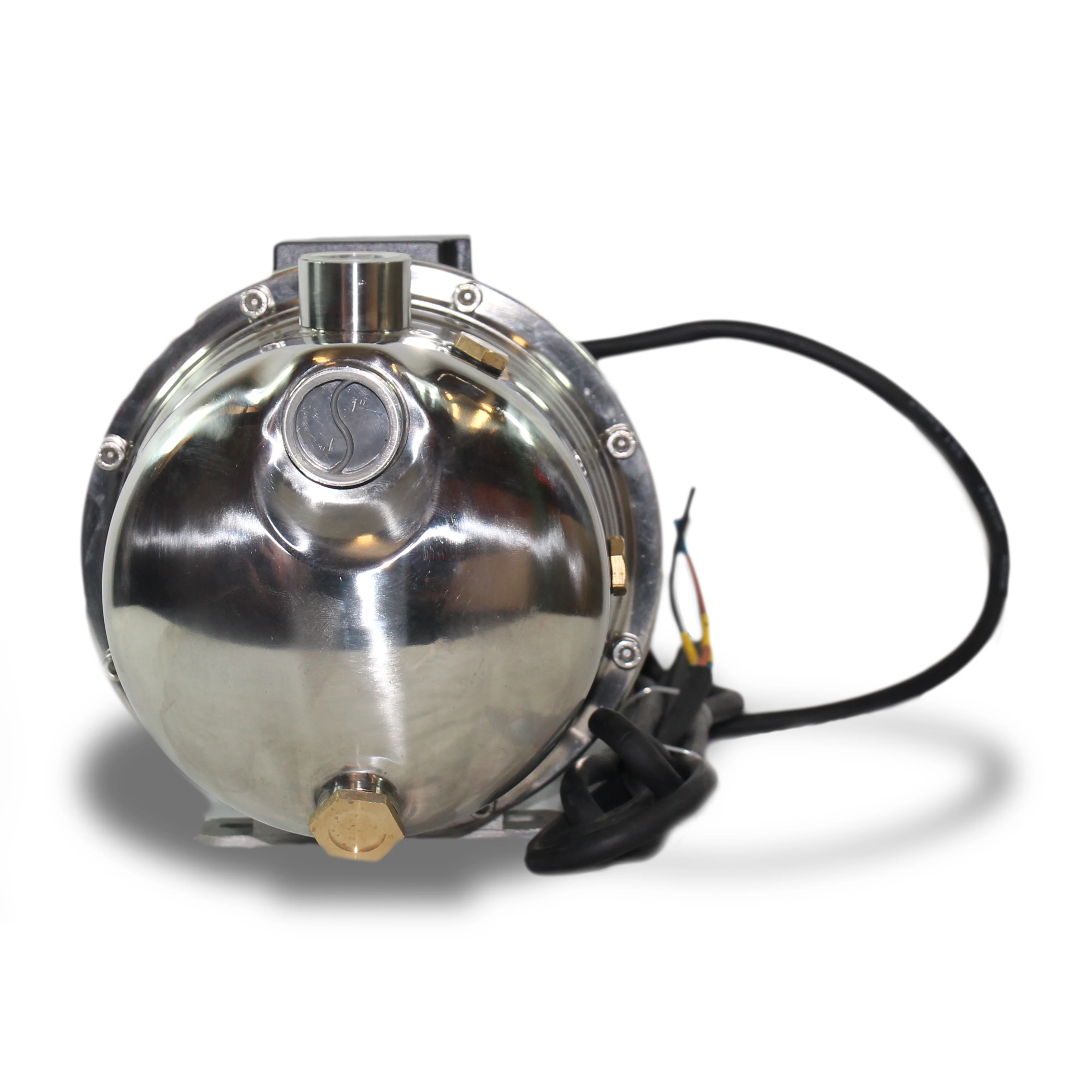

• Brushless Motor Transfer Pump (1" FNPT input & output)
• Wire to MC4s to connect controller to solar panels (20 ft)
• Wire to connect pump to controller
• Parallel splice connectors (for 8 panel kit)
• Installation Manual with step-by-step instructions
• Free Access to DIY Success Center - a portal for RPS customers to connect with a huge library of guides and advice from engineers



Note: When drawing from a pond, spring or other water source located below the pump, a foot valve (one-way valve with filter, not included) is needed to maintain prime in the suction line.

Component Dimensions:

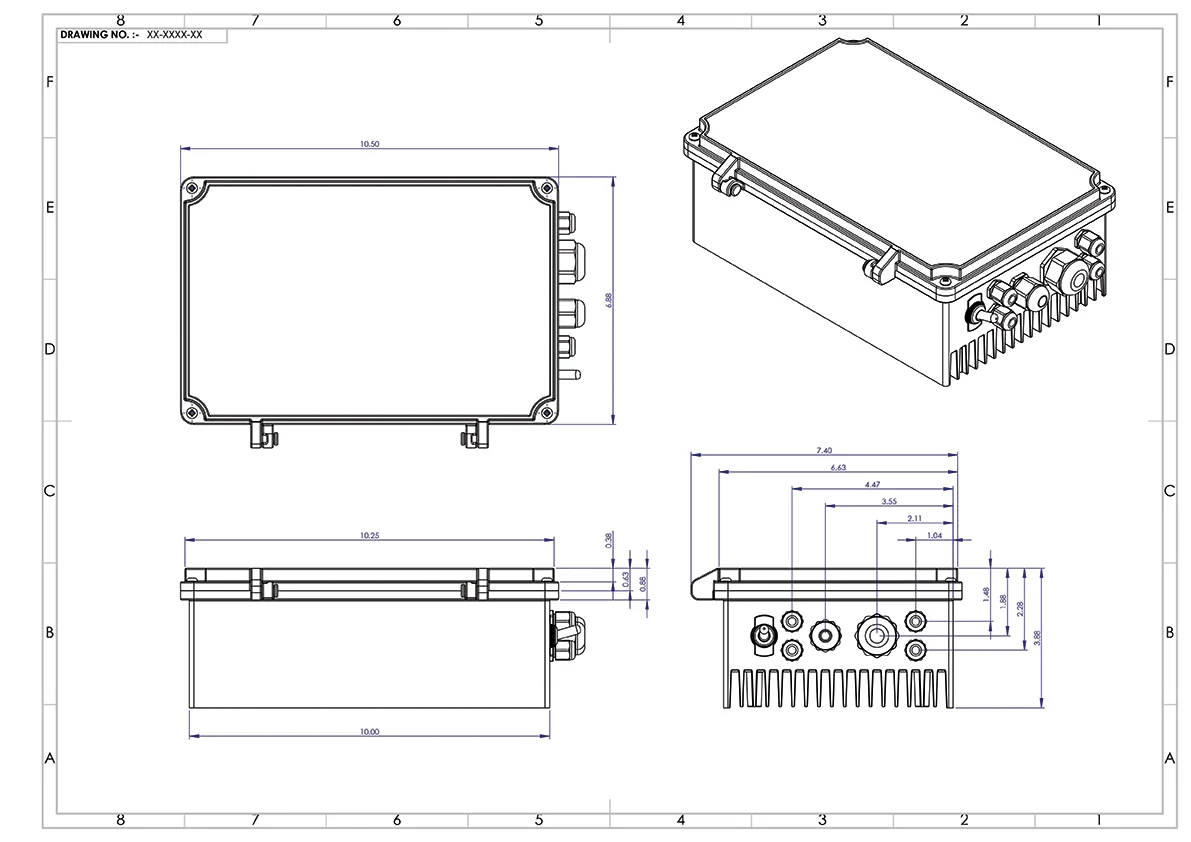

Solar Panels: Small: 38.6” x 20.9” x 1.18”, 100W / 12V, ~15lbs Each Well Pump: 14" x10" x8", 1" Inlet/Outlet, ~18lbs Controller: 13” x 8” x 6”, ~10lbs

Downloads:

RPS T400/T800 Solar Transfer Pump Kit SPEC SHEET.PDF 📄

100W SOLAR PANEL SPEC SHEET.PDF 📄

375W SOLAR PANEL SPEC SHEET.PDF 📄



Sizing

Gallons Per Day

		T400			T800
		GPD	GPM		GPD	GPM
Head	PSI
0	0	4752	13.2		4860	13.5
10	4	4356	12.1		4536	12.6
25	11	3204	8.9		3672	10.2
50	22	1152	3.2		3528	9.8
75	32				2340	6.5
100	43				684	1.9



MATCHING PSI & WATER ESTIMATES TO A SOLAR PUMP

Gardeners, food foresters, homesteaders, ranchers- they’re all trying to get the best bang for their buck while also planning to expand operations in the future. You may only use 20PSI drip lines now, but in the next two years plan on watering pastures with 60 PSI sprinklers. RPS recommends sizing up to the next most powerful model if you know that you’ll need a bit more power in the future. Upgrade from 4 solar panels with the T400 to eight solar panels for the T800. If the T800 fits current needs but is insufficient for future irrigation, choose the Pro Surface Pump (ProS750, ProS1000, ProS200, etc.).
